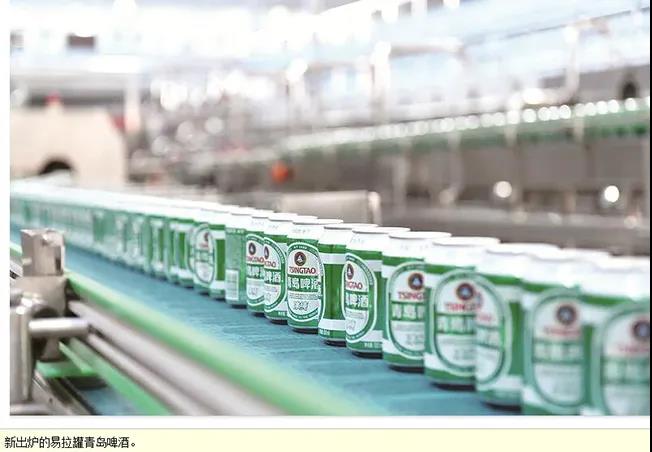

When buying beer, people will see a variety of beers on the counter, among which can beer occupies a large screen.

Can beer actually has a lot of advantages.

1. Better light coverage. Light is the biggest killer of any beer, as the smell of light can ruin any enjoyment.Apparently, aluminum cans, which are completely dark, beat glass bottles.

2. Better sealing. The sealing of the glass bottle cap is naturally inferior to the mechanical stamping of the integral canning.

3. Lower cost. Aluminum can prices are low thanks to mature aluminum recycling technology. And in the recycling, is a melt to rebuild, there is no glass bottle to keep the bottle body intact, flush the label and adhesion, thorough cleaning and high-temperature sterilization and other tedious process.

4. Easy to carry and store, easy to cool down.

 Many breweries use cans as packaging material to produce cans of beer. T.LINE Technology produces empty can inspector -- filling management inspector -- liquid level inspector -- extrusion pressure inspector -- printing inspector -- full case weight inspector, which is committed to creating high-speed intelligent can filling production line for can beer manufacturers.

Empty can inspector

Detection function: deformation, mutilation and foreign bodies of can mouth, foreign bodies on the inner surface of the can body and can bottom. Friendly operation interface. Defective product treatment device: automatic single-stage pneumatic rejector. Detection capacity:72,000BPH.

Technical features: With independent intellectual property rights of the underlying algorithm, it can flexibly meet a variety of personalized detection needs. Innovative 360° full range detection technology; Adjustable light sources can fit more product types; The machine is designed to change bottle shapes quickly. Abundant production statistics and defective product storage, traceability function; The detection module can be customized freely.

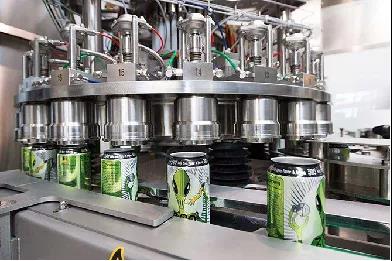

Filling management inspector

Responsible for monitoring the filling and capping machines and providing information on the work of each filling valve and capping head. Provide accurate and reliable information for the maintenance of filling machine and capping machine, avoid the cost of shutdown and maintenance, improve the entire production efficiency, reduce the cost.

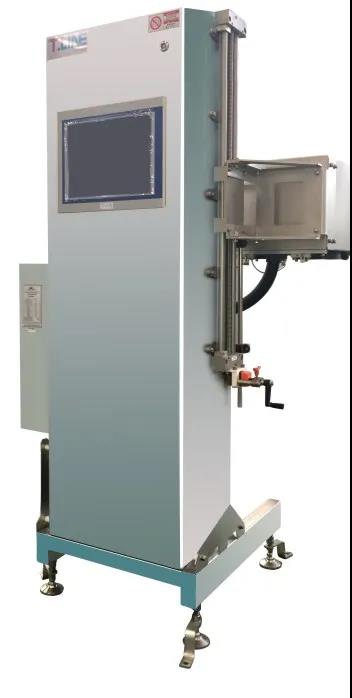

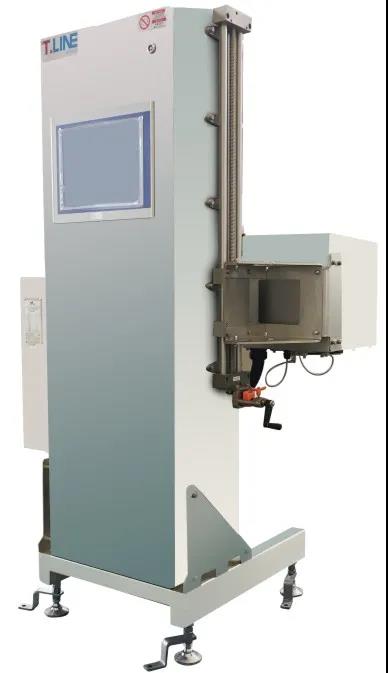

Liquid level inspector

The company developed and produced X-ray liquid level inspector. It uses the principle that the intensity of the ray will change with the position of the material surface after the interaction between the low-energy photon source and the substance to be measured, to detect the volume of the filling liquid material. Because of its non-contact measuring method, it has solved the most difficult problem that the conventional weighing method cannot measure the filling liquid material capacity on the production line. Therefore, it is widely used in online detection of food and beverage.

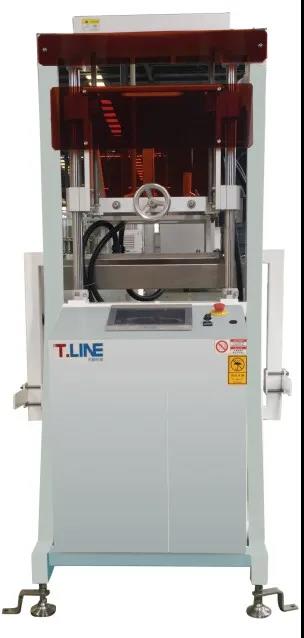

Extrusion pressure inspector

The extrusion pressure inspector is mainly composed of man-machine interface, pressure detection unit and rejector. The pressure detection unit is the core component of the equipment. Man-machine interface includes touch screen, tower light, operation interface; The rejector is the actuator of the system, which is used for shunting or removing unqualified cans, with a stable speed of 72,000 cans/hour.

The detection system uses extrusion and contact pressure sensing technology for detection. When the can passes through the detection machine, the detection machine extrudes the can with belts on both sides, and the pressure sensor behind the belt transmits the pressure value in real time. The control center analyzes the pressure value and makes a judgment. When the pressure value is lower than or higher than the predetermined value, the signal is transmitted to the rejector, and the unqualified product is struck out by the rejector.

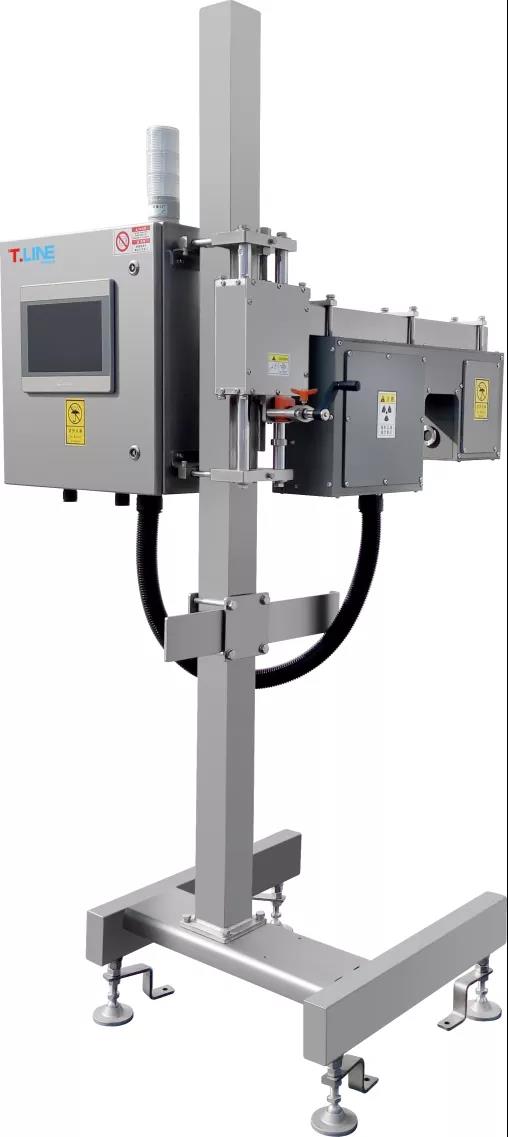

Printing inspector

Printing inspector is an intelligent guided vision system, detection speed is up to 15,00BPM, adopt non-contact on-line detection method, detection principle is based on intelligent visual technology, close to human judgment. The system is mainly composed of printing detection unit, HMI, rejecting device. The printing detection unit is a high-definition fast camera device. HMI consists of touch screen, tower lights and operation interface; The rejector, as the rejecting mechanism of the system, is used to shunt or reject the unqualified cans.

The detection functions of the device are as follows. The product has no code, the inkjet code is not complete(missing 15%), the inkjet code character is shrunk into a ball, the inkjet code position is offset(part of the inkjet code is sprayed to the edge of the bottle), the date can be identified and so on.

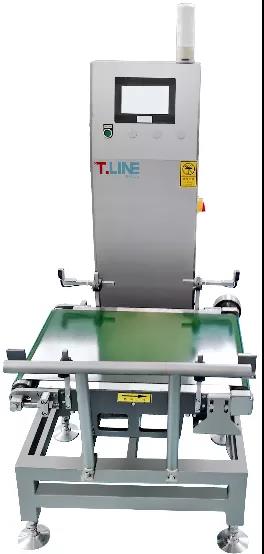

Full case weight inspector

The equipment is suitable for online automatic weight inspection of the whole case products, due to low weight, leakage detection, missing accessories, etc. It is widely used in beverage, food, pharmaceutical, cosmetic, electronic, industrial products, hard ware, military industry which have strict net content requirements. Product alias: dynamic inspection weighing scales, on-line inspection scales, automatic weighing machine.

T.LINE technology co., ltd is specializing in online detecting equipment research and development and manufacturing for soft drinks, beer, food, pharmaceutical industries. "Realize factory intelligence" is the direction of T.LINE efforts, equipment running 20,000 hours without failure is the quality commitment of T.LINE products. Every T.LINE people with sincere heart, whether for products or customers, are doing their best.When buying beer, people will see a variety of beers on the counter, among which can beer occupies a large screen.
